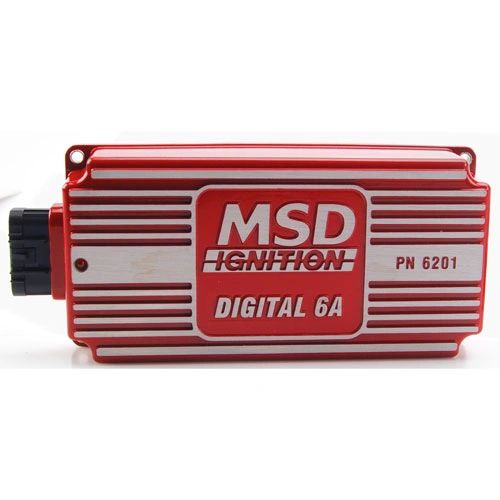

MSD Ignition Digital 6A Ignition Control 6201

6201 Digital 6A Ignition Control Specifications

• Height (in.) 2.25
• Width (in.) 4
• Overall Length (in.) 8
• RPM 15,000
• CARB EO Number D-40-43 (pdf)
• CD Voltage Output to Coil 520-540 V
• Circuitry Digital
• Coil Included No
• Current Draw 0.7 amps per 1,000 rpm
• Data Acquisition No
• Ignition Box Color Red
• Ignition Box Output Capacitive discharge
• Maximum Operating Voltage 15 V
• Minimum Operating Voltage 12 V
• Rev Limiter No
• Spark Output (millijoules) 135-145 Millijoules
• Timing Retard None
• Warranty 1-year
• Sold in Set of 1

Applies to:

• Per Spark Energy: 135-145 mJ
