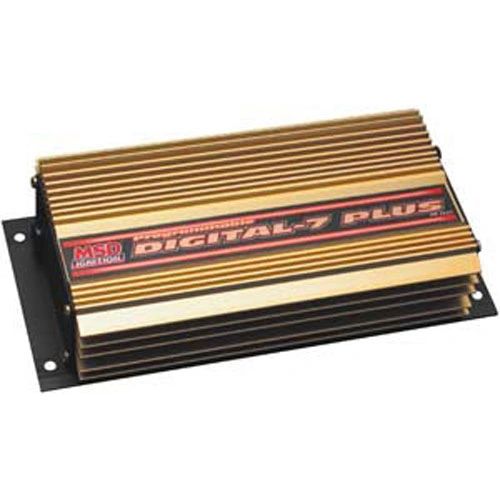

MSD Ignition Digital-7 Plus Programmable Ignition Control 7531
$866.16
7531 Digital-7 Plus Programmable Ignition Control Specifications
- Height (in.) 2.25
- Width (in.) 4.5
- Overall Length (in.) 9.5
- RPM 10,000
- CD Voltage Output to Coil 535 V
- Circuitry Digital
- Coil Included No
- Current Draw 1.1 amps per 1,000 rpm
- Data Acquisition No
- Ignition Box Color Gold
- Ignition Box Output Capacitive discharge
- Maximum Operating Voltage 18 V
- Minimum Operating Voltage 12 V
- Rev Limiter Yes
- Spark Output (millijoules) 190 Millijoules
- Timing Retard Three-stage
- Warranty 1-year
- Sold in Set of 1
Applies to:
- Illegal for Use in NHRA/IHRA Classes (Except NHRA Pro Mod)
