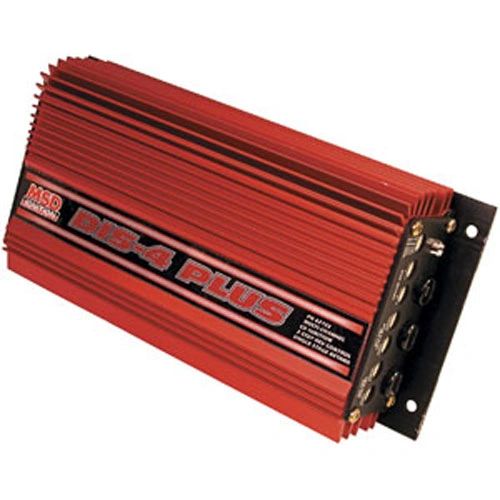

MSD Ignition DIS-4 Plus 4-Channel Ignition Control 62152

62152 DIS-4 Plus 4-Channel Ignition Control Specifications

• Height (in.) 2.25
• Width (in.) 4.5
• Overall Length (in.) 8.5
• RPM 14,000
• CD Voltage Output to Coil 470 V
• Circuitry Digital
• Coil Included No
• Current Draw 6.6 amps at 10,000 rpm
• Data Acquisition No
• Ignition Box Color Red
• Ignition Box Output Capacitive discharge
• Maximum Operating Voltage 18 V
• Minimum Operating Voltage 12 V
• Rev Limiter Yes
• Spark Output (millijoules) 105-115 Millijoules
• Timing Retard One-stage
• Warranty 1-year
• Sold in Set of 1

Applies to:

• 6 or 8-Cylinder Engine with 2, 3 or 4-Coil Packs
